Stronghaul EATF-DT Brochure.PDF

-Standard Equipment-
-8.00” x 3.00” x .250”w 6061-T6 Frame Tubes
-6.00” x 2.00” x .250”w 6061-T6 Hitch Tubes
-3.00” x 1.50” x .190”w 6061-T6 Floor Channels on 16” ctrs
-.250” Stake Pockets (3.5”x1.5” ID)
-.250” x 3.00” 6061-T6 Rub Rail
-2’ Dovetail Section, 3” Drop (Length of trailer includes DT section)
-7000lb Strt, E-brk, Slipper Leaf Spring, Dexter Axles on -DT70 models
-5200lb Strt, E-brk, Slipper Leaf Spring, Dexter Axles on -DT52 models
-HD Slipper Style Suspension, Greaseable Equalizer
-Galvanized .250” Axle Mounting Brackets with Polypropylene Tape

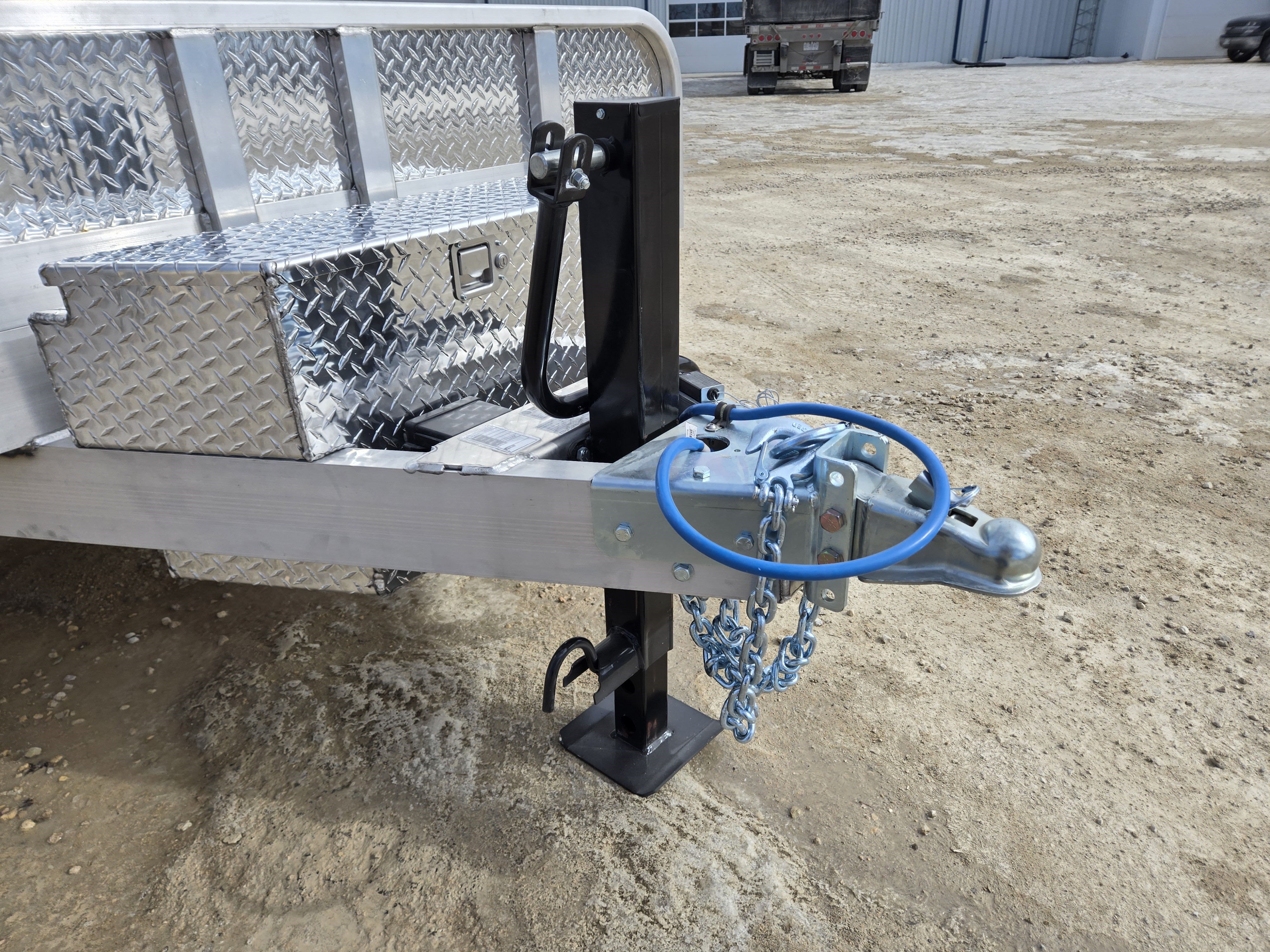

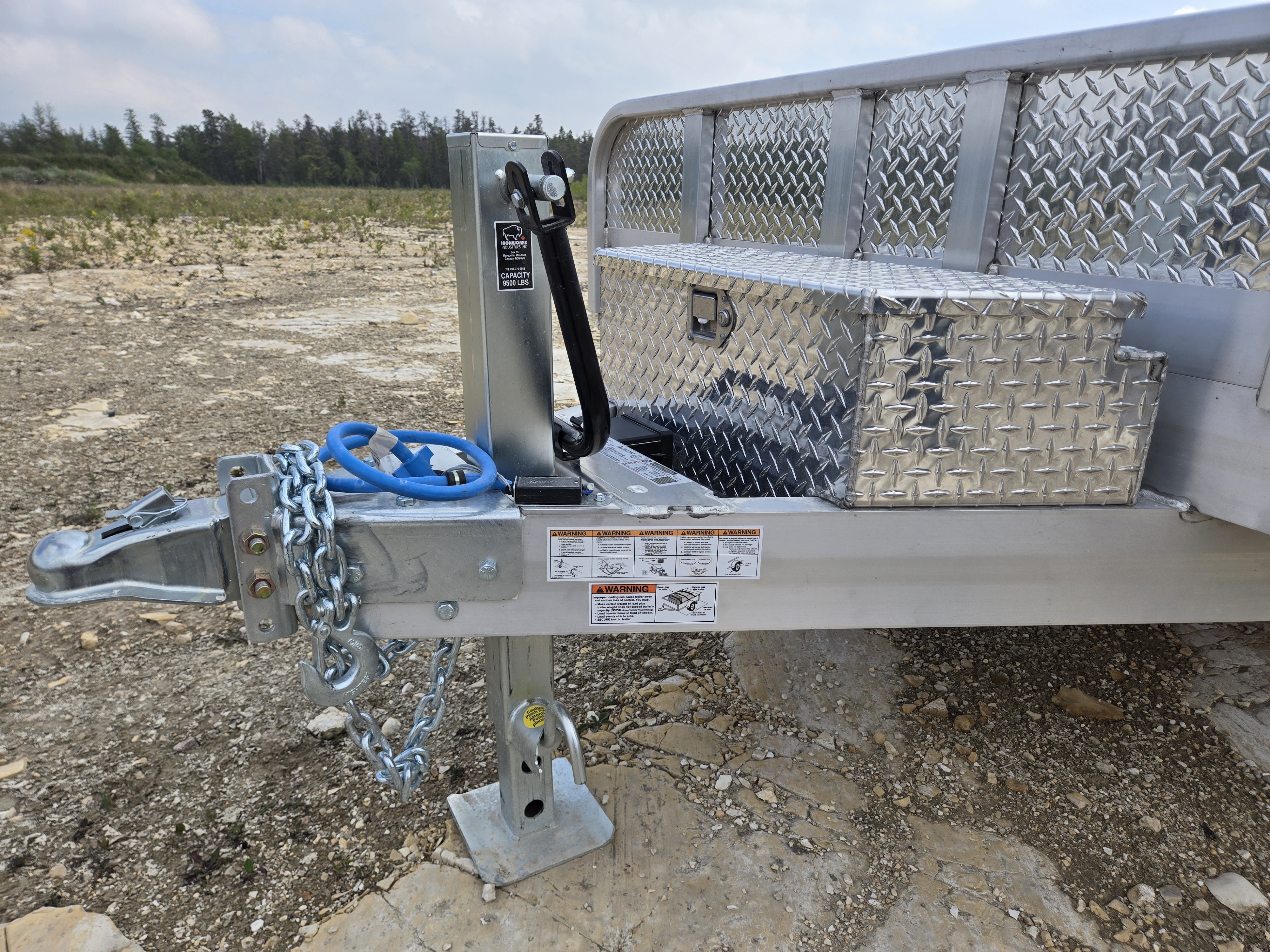

-2-5/16” Adjustable Ball Coupler, 4” of Height Adjustment with Polypropylene Tape
-9,500lb, Drop Leg Jack with Removable Side Wind Handle

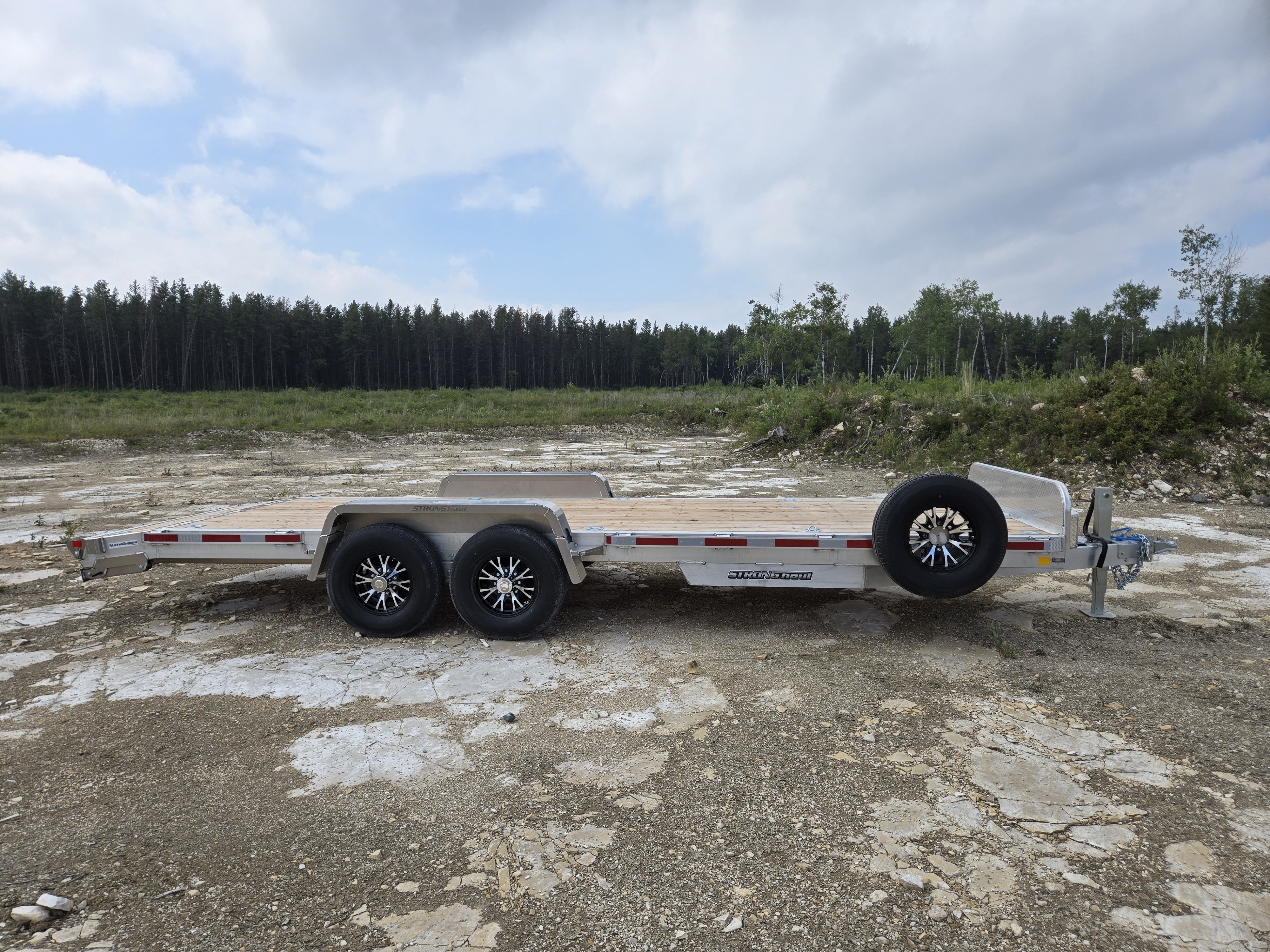

-13.5” Front Rail with Spare Tire Mount (Stake pocket spare MNT if tool box is installed)

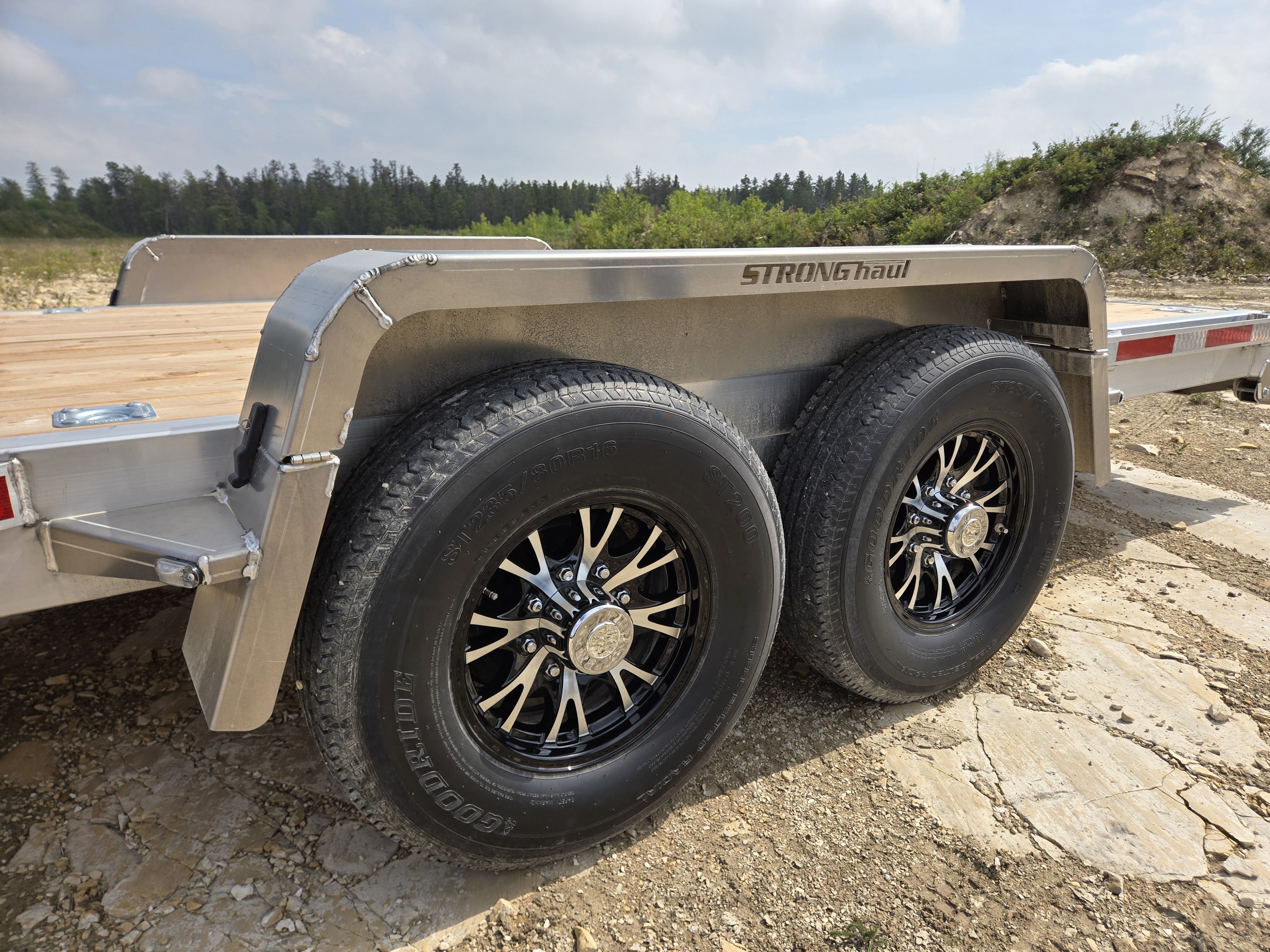

-ST235/80R16 10-ply Radial Tires
-Modular-Style, Black Steel Wheels, R16”, 8 lug on 6.5” BHP
-7-Way RV-Style Connector
-Junction Box, Break-away Kit w/Charger
-LED Lighting Pkg with Reverse Lights
-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone
-2x8 No.1 Grade, DglsFir/Larch Plank Floor
-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

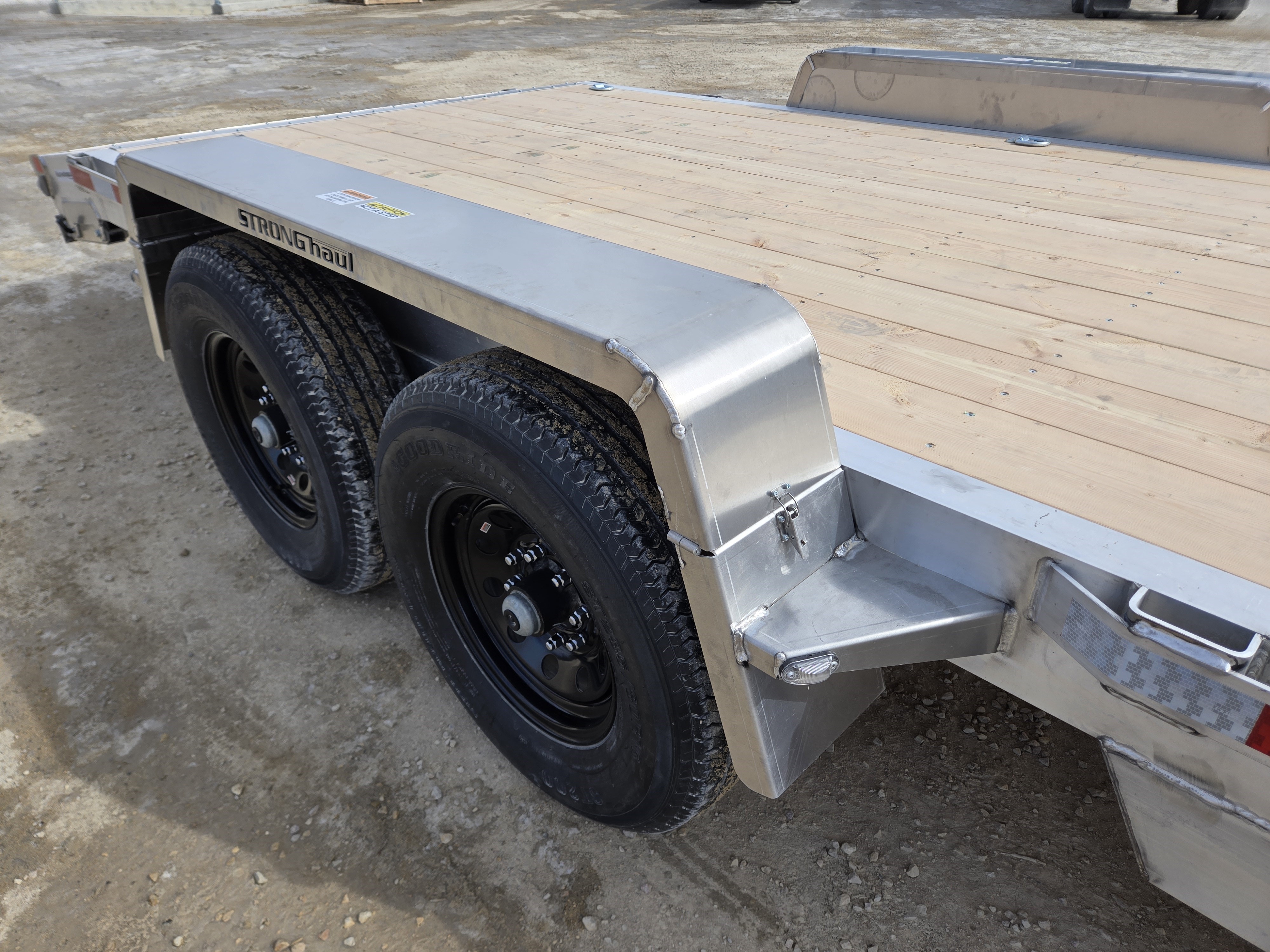

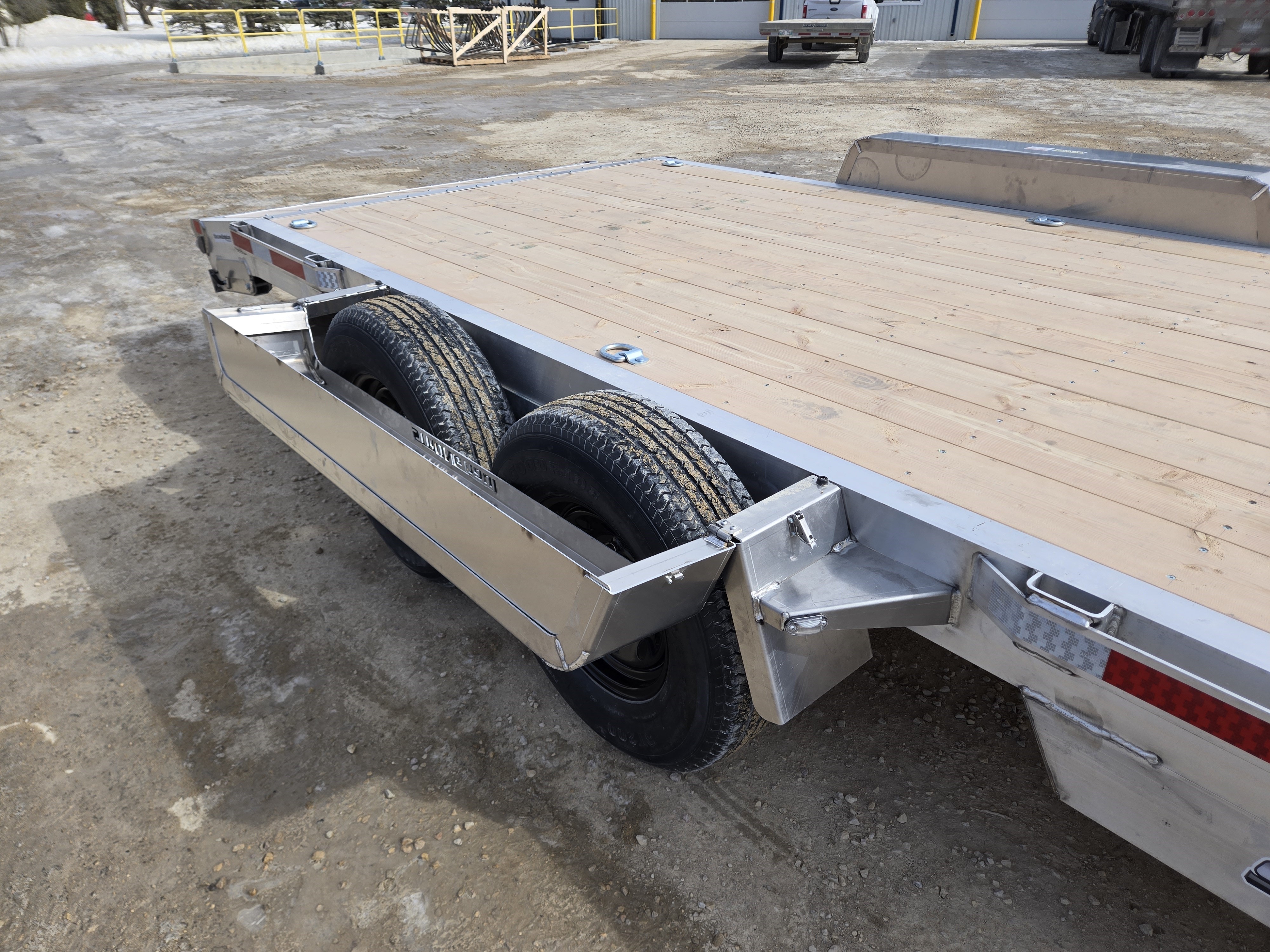

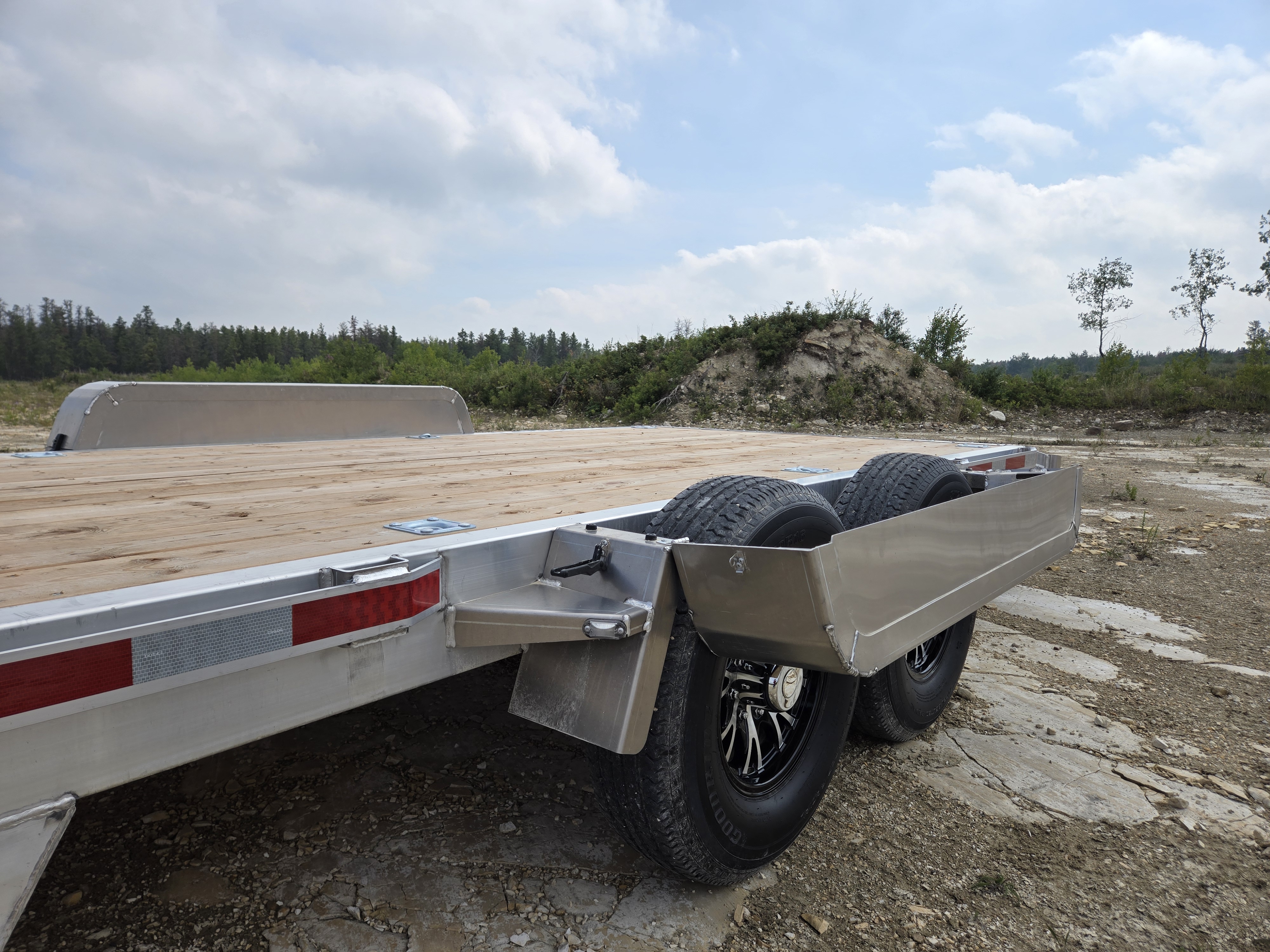

-Tip Out Fenders with Stainless Latch
-Fold Up Stabilizer Stands
-4k lb Lashing Rings, Zinc Plated (8 Rings on 20’ model, 10 on 22’/24’, 12 on 26’)

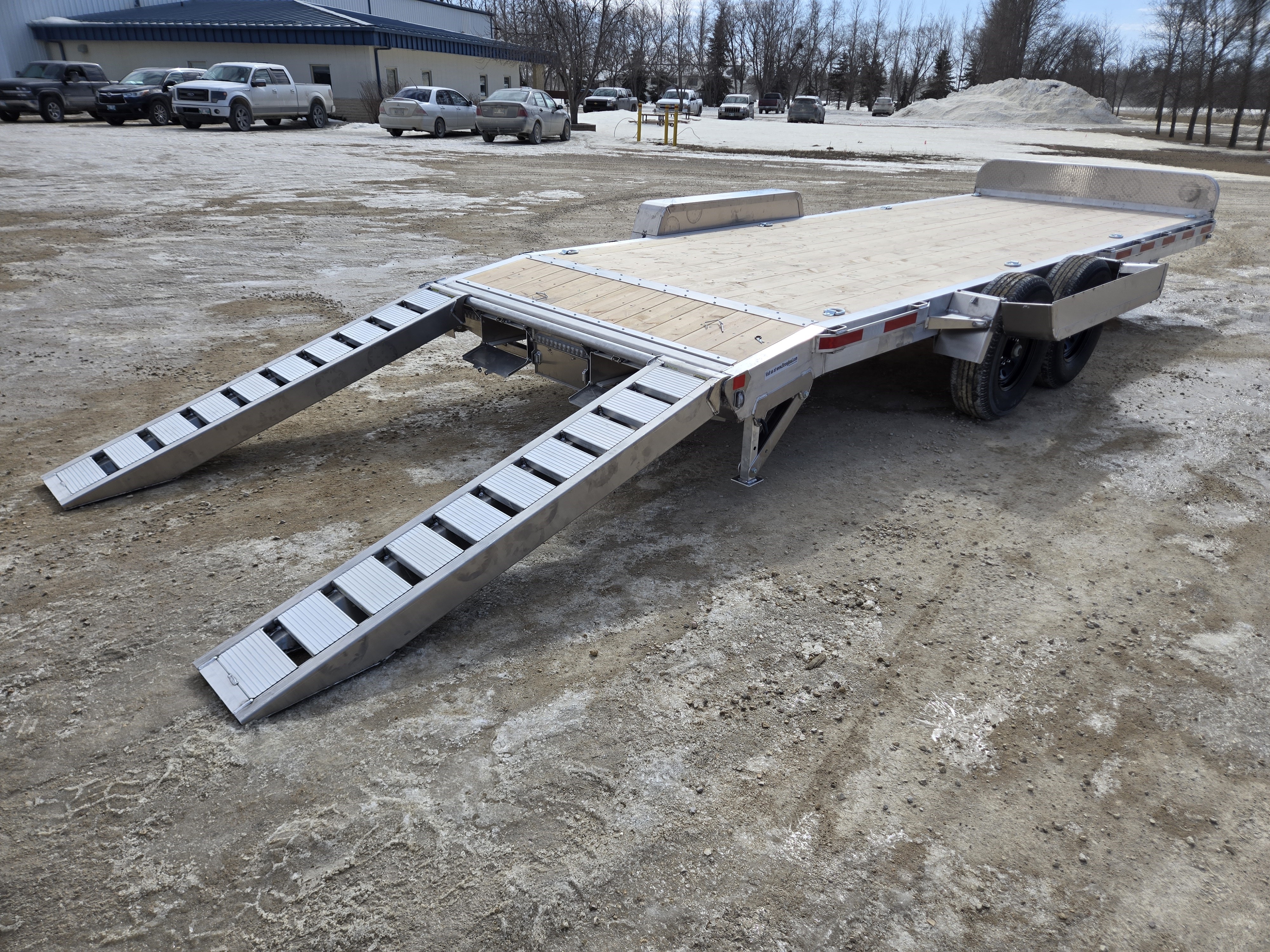

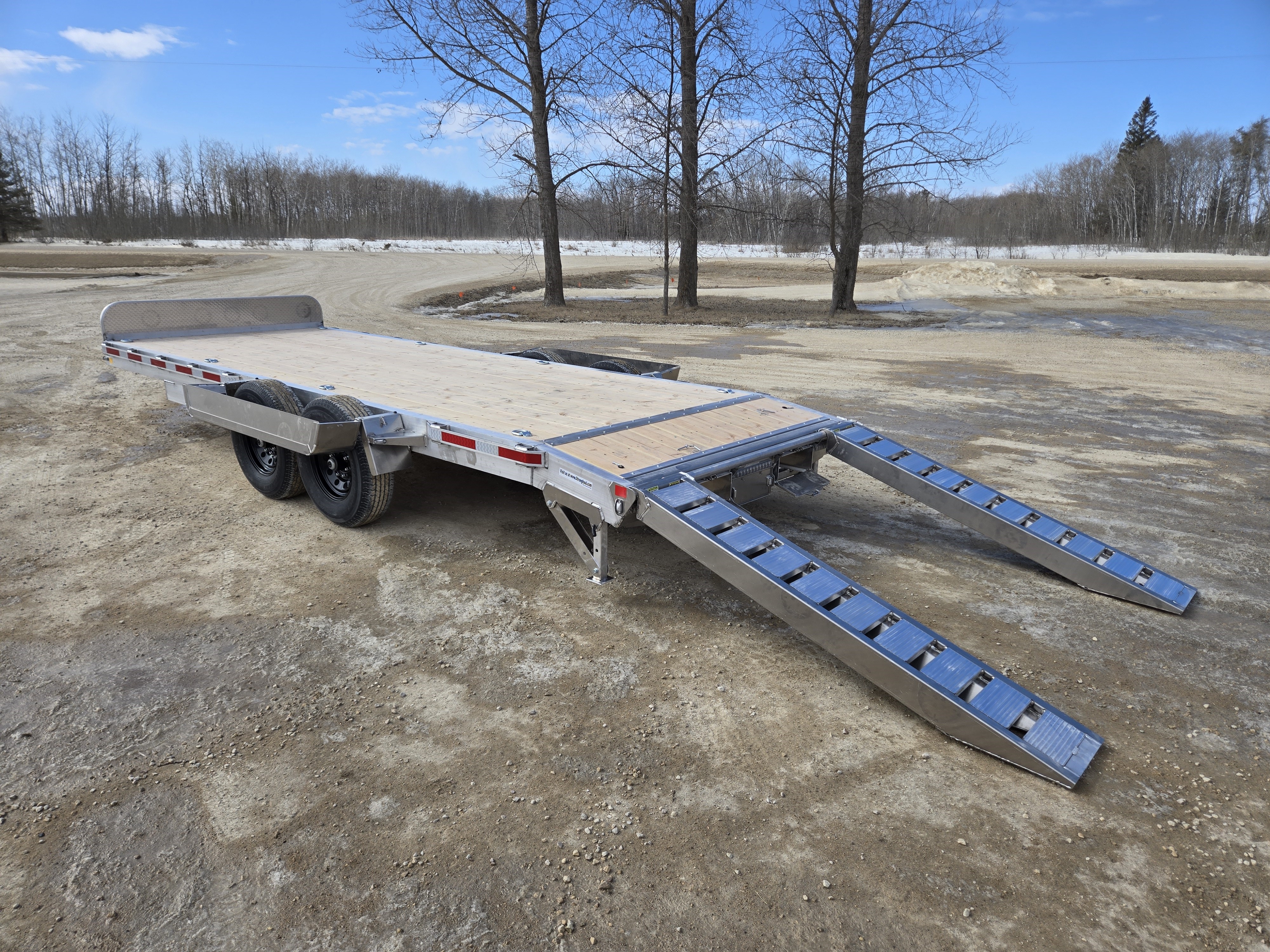

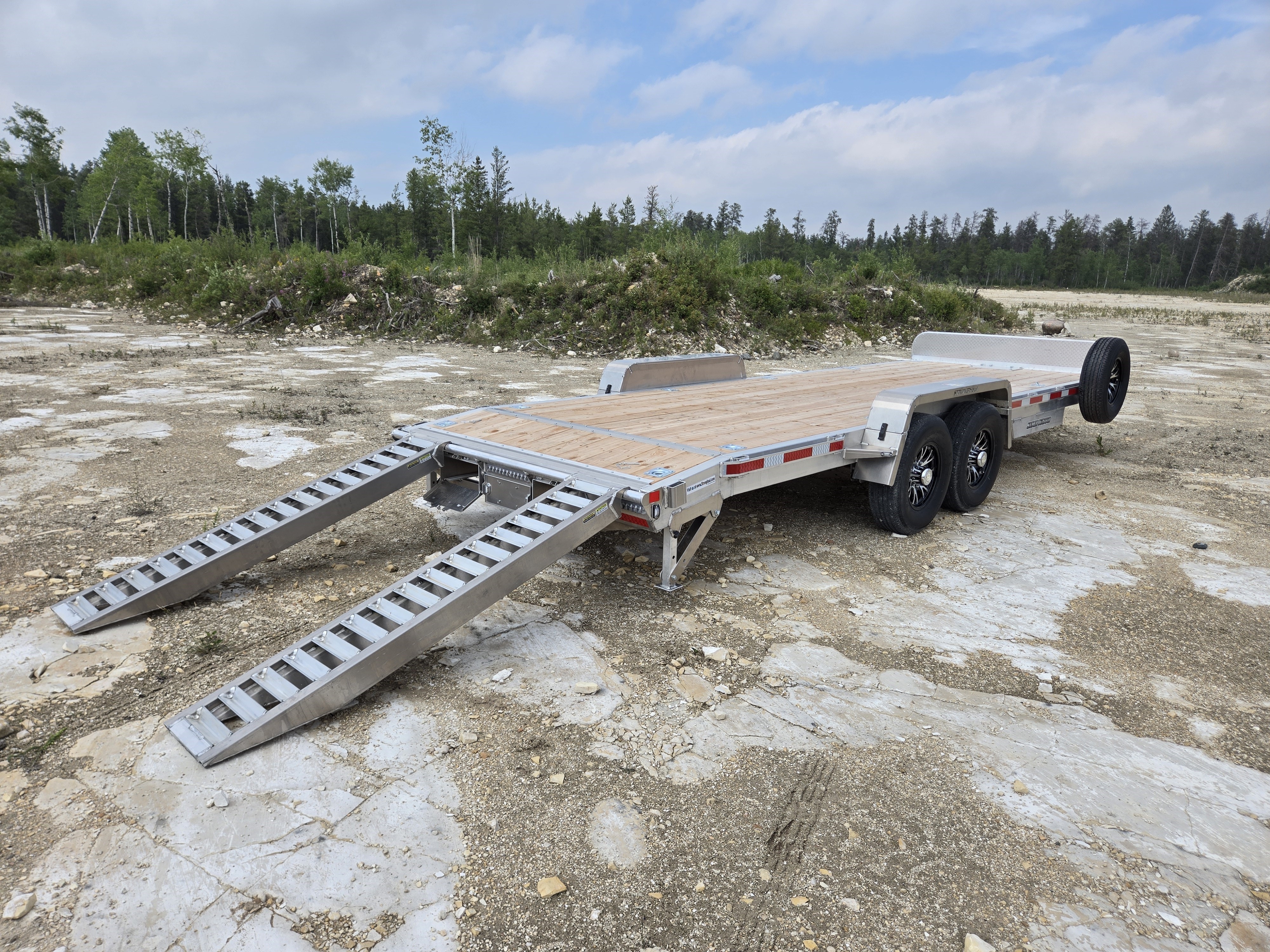

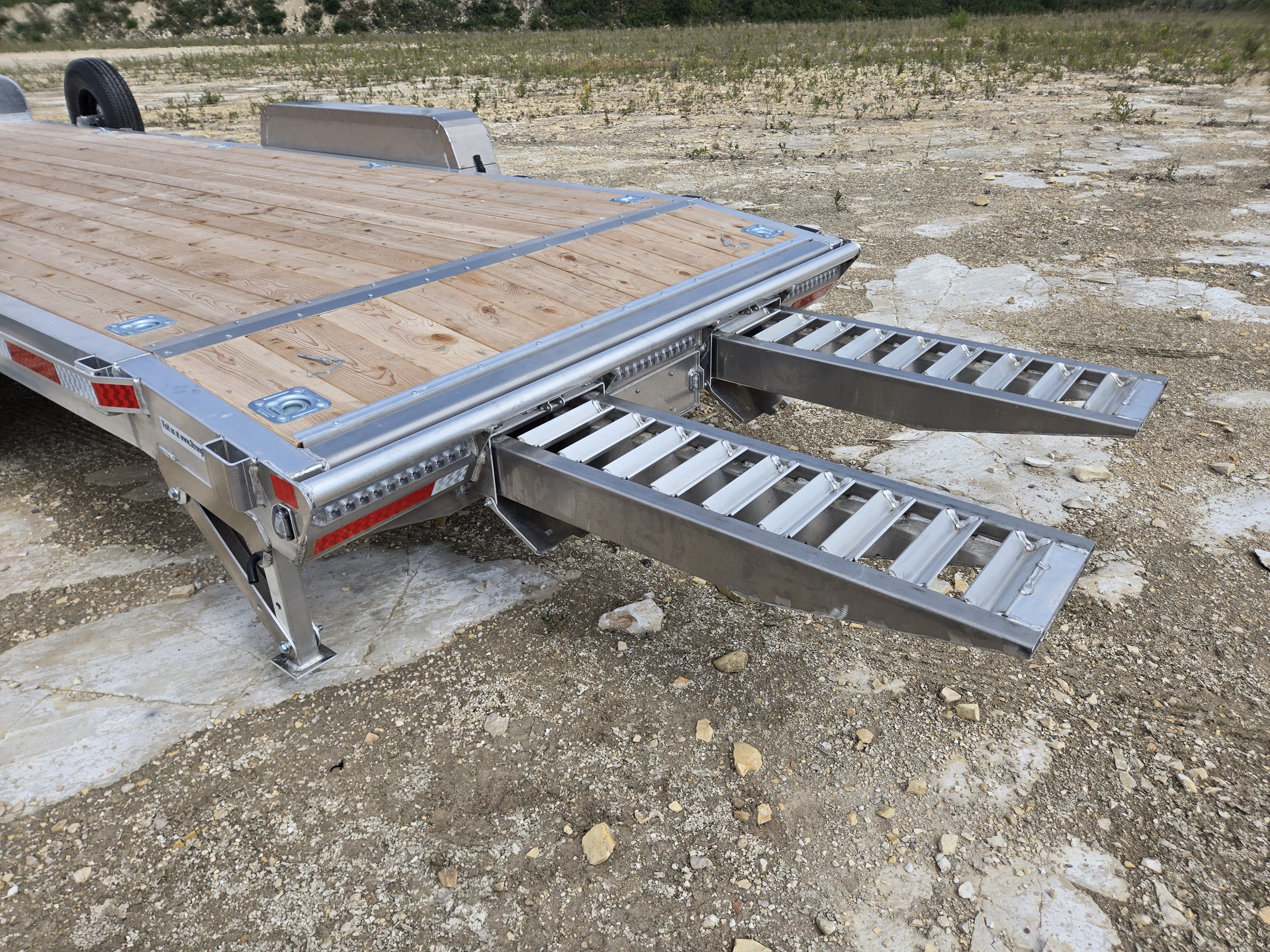

-Pocket Style Ramps, Mounts Under Rear of Deck, 7,000lb CAP/Ea, 78” L x 14” W
-Deck to Ground Height: 26”
-Bumper to Ground Height: 23”
-Coupler to Ground Height: 16” When Level (18” or 14” with adjustment)
-Ramp Loading Angle: 15 Degrees
-GVWR: 14,000lbs or 10,000lbs
